During the scorching summer months in Pakistan, many households and offices face rising electricity bills due to continuous air conditioner usage. With the growing interest in renewable energy, especially solar power, a common question arises: how many solar panels are required for a 1.5 ton AC? This guide, created by Xynco Solutions, aims to provide a comprehensive answer for Pakistani users, offering detailed calculations, practical advice, and insights into the most efficient solar energy solutions.
How Many Solar Panels Are Required for a 1.5 Ton AC?
Determining the number of solar panels required for a 1.5 ton AC is not as simple as dividing the AC’s wattage by the panel’s capacity. Several factors influence the total solar requirement, including the type of AC, the capacity and efficiency of solar panels, sunlight hours in your location, and whether the AC runs alongside other appliances. By understanding these variables, Pakistani users can design an optimal solar system that ensures energy efficiency and cost savings.
Type of AC
The type of air conditioner significantly impacts electricity consumption. Inverter ACs, which are increasingly popular in Pakistani homes and offices, adjust their compressor speed according to the cooling requirement, resulting in lower energy usage. In contrast, conventional or non-inverter ACs operate at full capacity continuously, consuming more electricity. For a 1.5 ton inverter AC, the average power consumption is around 1800 watts, whereas a conventional 1.5 ton AC may consume approximately 2400 watts. Therefore, knowing your AC type is crucial for calculating the appropriate number of solar panels.
Solar Panels Capacity
Solar panels are rated based on their maximum capacity, such as 440W or 545W. However, in real-world conditions, panels rarely produce 100% of their advertised capacity. On average, a panel generates about 70% of its rated wattage due to environmental factors like temperature, dust, and shading. For instance, a 440-watt panel effectively produces 308 watts, while a 545-watt panel outputs approximately 381.5 watts. This actual production must be factored in when calculating how many solar panels are required for a 1.5 ton AC in Pakistan.

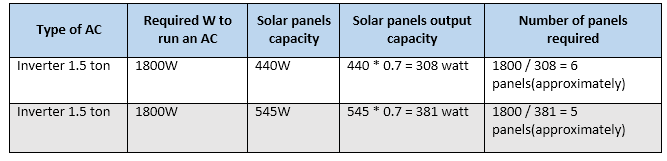

1.5 Ton Inverter AC
For a 1.5 ton inverter AC consuming 1800 watts, using 440W solar panels that produce 308 watts each, a homeowner would need approximately six panels to run the AC efficiently. If opting for 545W panels, which produce around 381.5 watts each, the required number drops to five panels. These calculations consider average sunlight hours in Pakistan, ensuring that the AC can run optimally during peak cooling periods while reducing reliance on grid electricity.

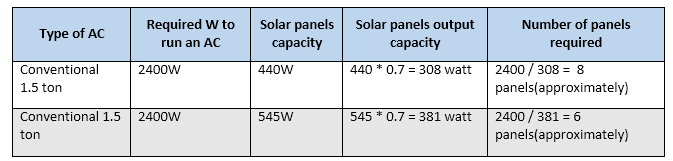

Conventional / Non-Inverter 1.5 Ton AC
Conventional or non-inverter ACs consume more electricity, averaging 2400 watts for a 1.5 ton unit. To power such an AC with solar energy, more panels are required compared to an inverter AC. For example, using 440W panels producing 308 watts each, a total of eight panels would be necessary, while six 545W panels would suffice. Homeowners planning a solar system should consider the type of AC to optimize panel count and system efficiency.

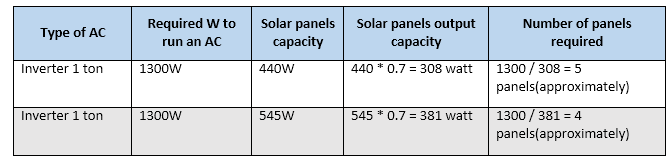

How Many Solar Panels Are Required to Run 1 Ton AC?
A 1 ton AC consumes less energy than a 1.5 ton unit, averaging 1300 watts for inverter models. For Pakistani households, running a 1 ton inverter AC using 440W solar panels would require around four to five panels, while three 545W panels would generally suffice. These calculations provide flexibility for smaller homes or rooms with moderate cooling needs, ensuring that energy consumption remains sustainable without oversizing the solar system.

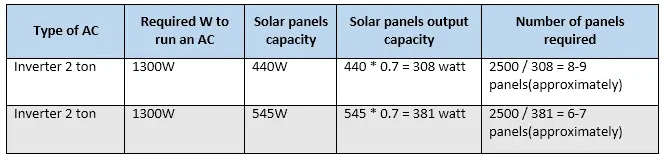

How Many Solar Panels Are Required to Run 2 Ton AC?
Larger spaces, such as offices or conference rooms in Pakistan, often use 2 ton ACs, which consume approximately 2500 watts. To run a 2 ton inverter AC efficiently, eight to nine 440W panels or six to seven 545W panels are typically required. For commercial setups, it is crucial to consider both AC usage and additional electrical loads, such as lighting or office equipment, to accurately design a solar system that balances performance and cost-effectiveness.
Practical Advice for Pakistani Users
When installing solar panels to run an AC, several factors should be considered for maximum efficiency:
- Sunlight Hours: Pakistan enjoys ample sunlight, but regional variations affect solar production. Karachi, Lahore, and Islamabad offer higher sunlight hours compared to northern areas, influencing the number of panels required.
- Panel Orientation and Placement: Proper installation angles and minimal shading enhance energy output, reducing the total number of panels needed.
- AC Usage Patterns: Running multiple appliances simultaneously increases the required solar capacity. Homeowners should plan system sizing accordingly.
- Energy Efficiency: Using a solar inverter AC or a solar hybrid air conditioner improves energy efficiency and reduces the number of panels required, offering significant cost savings over time.
Understanding Panel-to-Load Ratio
The panel-to-load ratio is critical in designing a solar system. It ensures that the solar panels provide sufficient power for the AC while accounting for fluctuations in sunlight and seasonal variations. For example, overestimating panel count may lead to higher upfront costs, while underestimating can result in inadequate cooling and continued dependency on grid electricity. Xynco Solutions provides expert guidance to calculate the optimal ratio for any household or commercial setup in Pakistan.
Xynco Solutions Expertise
As a forward-thinking innovation company, Xynco Solutions specializes in delivering tailored solar energy solutions for homes, offices, and commercial spaces across Pakistan. Our team of solar energy experts provides consultation on AC wattage, solar system sizing, and energy efficiency strategies, ensuring that clients achieve optimal results. Whether considering Honda solar panels, hybrid air conditioners, or conventional setups, our solutions help reduce electricity costs while minimizing carbon footprints.
Conclusion
The number of solar panels required for a 1.5 ton AC in Pakistan depends on multiple factors: AC type (inverter vs. non-inverter), panel capacity, sunlight hours, and additional appliance loads. Based on realistic calculations, a 1.5 ton inverter AC typically requires five to six 440W or 545W solar panels, while a conventional AC may need more. Smaller 1 ton ACs need four to five 440W panels or three 545W panels, and larger 2 ton ACs require eight to nine 440W panels or six to seven 545W panels.
To ensure optimal performance and energy savings, Pakistani homeowners and businesses should consult a solar energy expert. Xynco Solutions offers professional guidance on system design, AC selection, and panel installation, delivering the best solar energy solutions in Pakistan for cost reduction, energy efficiency, and environmental sustainability.
